40ft Foton Electric Gear Box Truck Trailer Vehicle Lorry Mini Cargo Van

Brand Name : BIOCLEAN

Model Number : BCCVB-FG

Certification : SGS-CE-OWB-2023-5562

Place of Origin : NINGBO CHINA

MOQ : 1

Price : 6000-12000 USD

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 10000 Units per year

Delivery Time : 40 Workingdays

Packaging Details : Custom steel frame crating

Model : BCCVB-FG

Dimens ion (L x W x H) : 8480×2520×3050mm

Gross Vehicle Weight (GVW) : 30t

Rated Loading Capacity : 25t

Warranty Period : 1 year

Wheelbase : 3200mm

Contact Now

Product descriptions

40ft Foton Electric Gear Box Vehicle Range: Trucks, Trailers & Mini Cargo Vans


Foton’s 40ft vehicle lineup—encompassing electric gear box trucks, trailers, lorries, and mini cargo vans—blends cutting-edge electric powertrain tech with versatile design for modern logistics needs.

Core Highlights:

  • Electric Gear Box Advantage: Equipped with Foton’s advanced electric transmission system, delivering energy efficiency (20% lower power consumption vs. traditional gearboxes) and smooth, low-noise operation, ideal for urban delivery and long-haul transport alike.
  • 40ft Versatility: The 40ft dimension balances spacious loading (up to 50 cubic meters for cargo vans/lorries) with maneuverability, while the trailer variant supports flexible coupling with Foton truck chassis for expanded hauling capacity.
  • Customizable Configurations: Tailor axle setups (2/3-axle options for trucks/trailers), body styles (curtain-side, closed cargo, refrigerated), and smart features (GPS tracking, load monitoring) to match logistics demands; ODM/OEM services cater to niche needs like food transport or parcel delivery.
  • Reliable Components: Fitted with premium tires (Michelin/Goodyear options), air suspension for stable transit, and Foton’s durable landing gear (for trailers), ensuring long-term performance even under heavy loads (up to 45 tons for 3-axle trucks).
  • Compliance & Access: Certified to ECE/R100 (electric vehicle safety) and ISO standards, with EU market access guaranteed; the mini cargo van variant additionally meets urban emission regulations for zero-carbon city operations.

From urban mini cargo runs to intercity 40ft trailer transport, Foton’s electric gear box vehicles merge eco-friendliness, customization, and brand reliability—redefining efficiency for global logistics.



Product Specification

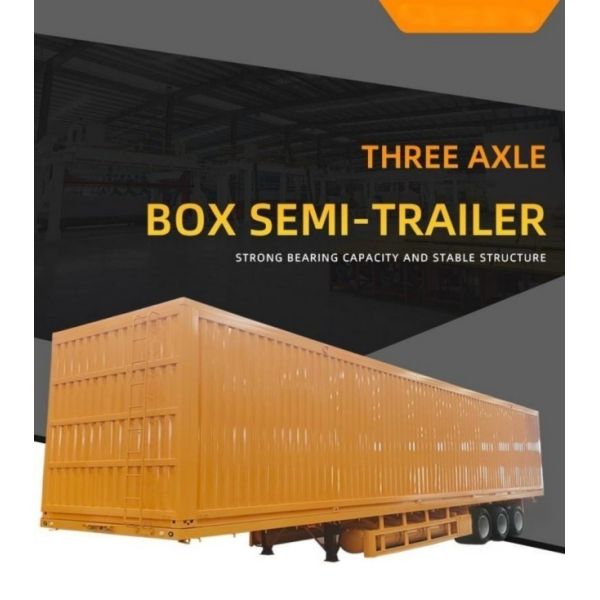

2 Axles Van Semi Trailer 3 Axles Van Semi Trailer 4 Axles Van Semi Trailer
Application:Food/Cargo Loading
Loading Capacity:20-50 Tons Loading Capacity:30-60 Tons Loading Capacity:60-100 Tons
L*W*H:13000mm*2550mm*2400mm
Door Position:Multi-Choice
Door opening style:Multi-Choice
Box Plate Thickness:0.9mm
OEM/ODM:Available
Tandem Style:Available
SKD/CKD Cooperation:Available
2 Axles Van Semi Trailer 3 Axles Van Semi Trailer 4 Axles Van Semi Trailer
Main Beam Material
Height: 500mm Height: 500mm Height: 500mm
Upper Plate: 12mm Upper Plate: 14mm Upper Plate: 16mm
Middle Plate: 6mm Middle Plate: 8mm Middle Plate: 10mm
Lower Plate: 14mm Lower Plate: 16mm Lower Plate: 18mm
Axles:2*13T/16T FUWA/BPW Axles:3*13T/16T FUWA/BPW Axles:4*13T/16T FUWA/BPW
Tire:11.00R20/12R22.5*8 pieces, Linglong/Triangle/Double-Coin/Bridgestone Tire:11.00R20/12R22.5*12 pieces, Linglong/Triangle/Double-Coin/Bridgestone Tire:11.00R20/12R22.5*16 pieces, Linglong/Triangle/Double-Coin/Bridgestone
Rim:9.0/8.0*8 pieces, steel/aluminum Rim:9.0/8.0*12 pieces, steel/aluminum Rim:9.0/8.0*16 pieces, steel/aluminum
Suspension:Mechanical/ Air Suspension:Mechanical/ Air Suspension:Mechanical/ Air
Leaf Spring:90mm*13/16mm*10 pieces Leaf Spring:90mm*13/16mm*10 pieces Leaf Spring:90mm*13/16mm*10 pieces
Landing Gear:Jost 28T two-speed Landing Gear:Jost 28T two-speed Landing Gear:Jost 28T two-speed
King Pin:Jost 2''(50#)/3.5''(90#) changeable King Pin:Jost 2''(50#)/3.5''(90#) changeable King Pin:Jost 2''(50#)/3.5''(90#) changeable
Tool Box:steel/aluminum Tool Box:steel/aluminum Tool Box:steel/aluminum
